Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

Certification : ISO,CE

Packaging Details : Wooden Box

Supply Ability : 30 Set/Sets per Month

Price : 100

Brand Name : XioFiTec/Hanyan

Model Number : XioFiTec/Hanyan

condition : New

machine type : seam welder

place of origin : Sichuan, China

brand name : Hanyan Technology

warranty : 1 Year

weight (kg) : 1000

voltage : 380V

current : 60A

rated capacity : 9 Kw

rated duty cycle : 60%

dimensions : 2040x1005x1740mm

usage : seam welding

Welding process : TIG/MIG/MAG/PAW/SAW/RESISTANCE etc.

Welding length : 0-3000mm

Welding thickness : 0.4-6.0mm

Welding diameter : 80-800mm

Welding Material : stainless steel, carbon steel, galvanized steel, aluminum, copper etc

Weldable object : tubes, flat sheets, rectangular pipe, cylinders, cones, sinks, tank

After Warranty Service : Field maintenance and repair service

Local Service Location : Russia

After-sales Service Provided : Field installation, commissioning and training

Applicable Industries : Construction works

Showroom Location : Russia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Bearing, Gearbox, motor, Gear

Key Selling Points : Eco-Friendly

Port : Any Port in China

Contact Now

Product Description

•    Usage: square tube seam welding

•    Weldable material: stainless steel, carbon steel, galvanized steel, aluminum, copper etc.

•    Weldable objects: tubes, flat sheets, rectangular pipe, cylinders, cones, sinks, tank shells etc.

•    Welding Mode: TIG/MIG/MAG/PAW/SAW/RESISTANCE etc

•    Welding length: 0-3000mm

•    Welding diameter: 80-800mm

•    Welding thickness: 0.4-6.0mm

Model

 Max. Welding Length(mm)

Welding Thickness(mm)

Applicable Diameter(mm)




ZF-500

500

0.5-3.0

75-750



ZF-1000

1000

0.5-6.0

115-700



ZF-1500

1500

0.5-6.0

150-700



ZF-2000

2000

0.5-6.0

180-700



ZF-2500

2500

0.5-6.0

200-700



ZF-3000

3000

0.5-6.0

270-700



  • Customized service: lengthening, heightening and others

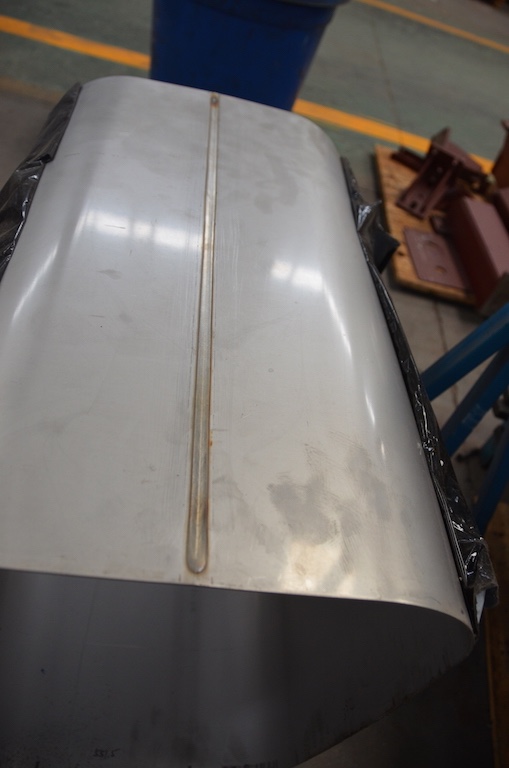

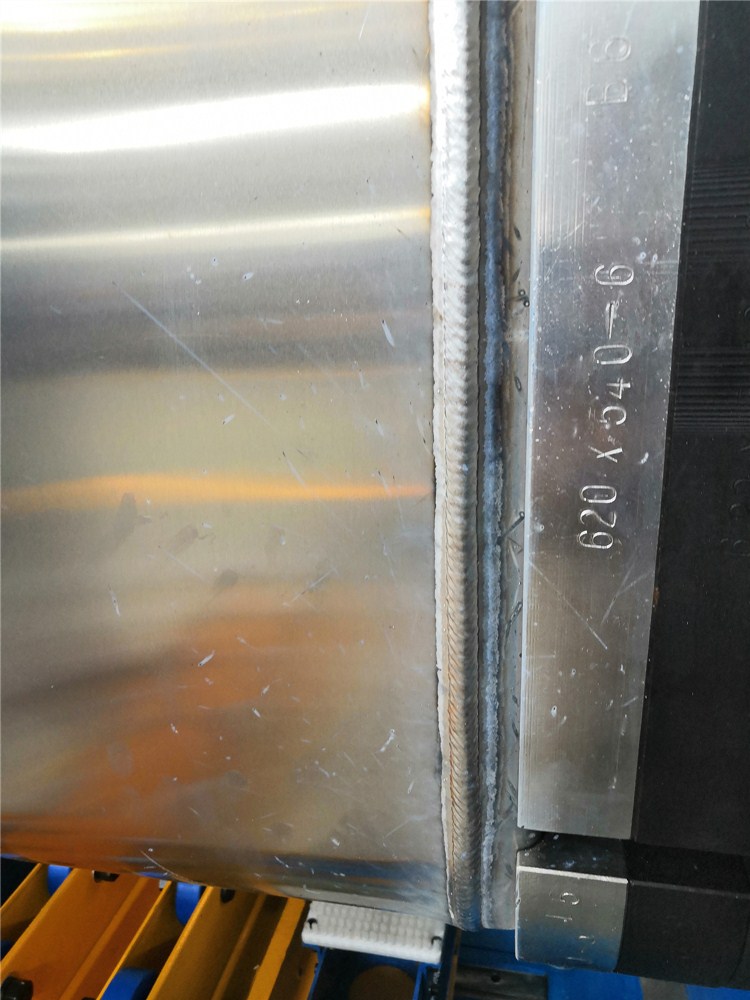

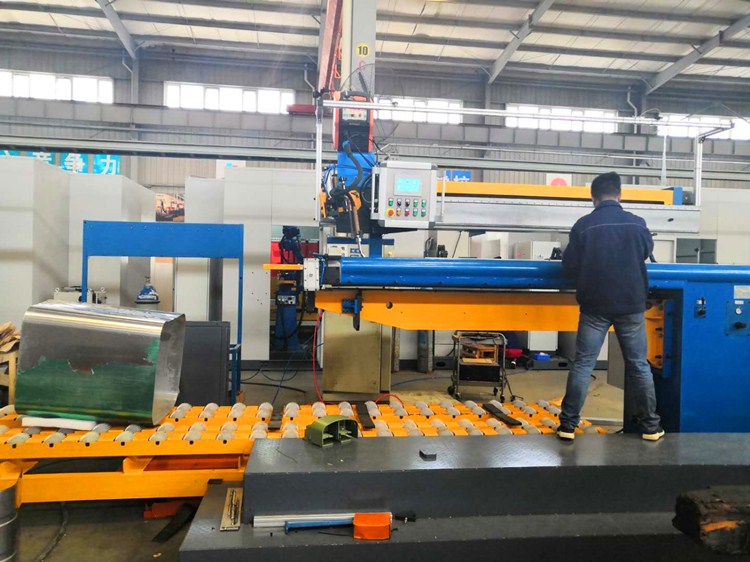

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

 Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine



Customized service: lengthening, heightening and others

ZF Series
HANYAN ZF Series external seam welders are designed for external welds on cylinders and flat sheets
Standard
Precision
Extra-Precision
Copper tip clamping fingers
Copper tipped, aluminum hold down fingers are standard on all HANYAN seam Welders. The copper tipped hold down fingers assist in the chilling the weld joint. Copper tooling absorbs and dissipates heat through the use of additional thermal mass, operating under pressure against work piece.

Back-up insert

Inserts are quickly and easily interchanged into the backup mandrel to accommodate a variety of material types and thicknesses. Copper inserts dissipate heat generated during the welding process.
Additional inserts are available to cover a wide range of material types and thicknesses. Inserts are available with or without gas back-up capabilities.

Back-up Mandrel

Designed to support the part being welded and hold the back-up inserts.
Droop mandrels are available to ease loading and unloading of parts.
Optional water cooled mandrels are available.

Fixed and removable riser options
Seam welder base can be modified to accommodate larger diameter parts.

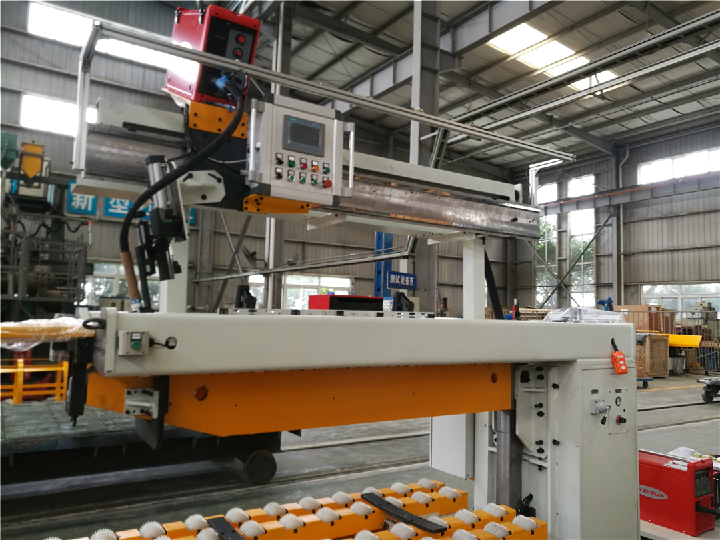

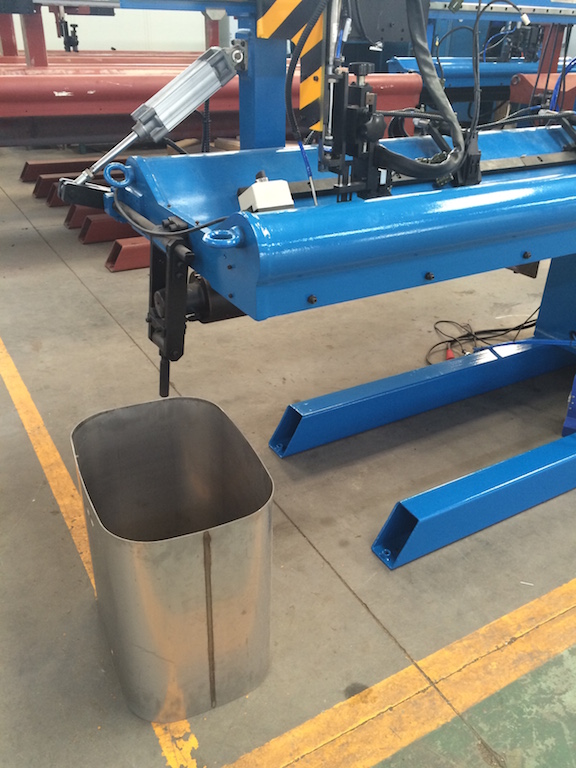

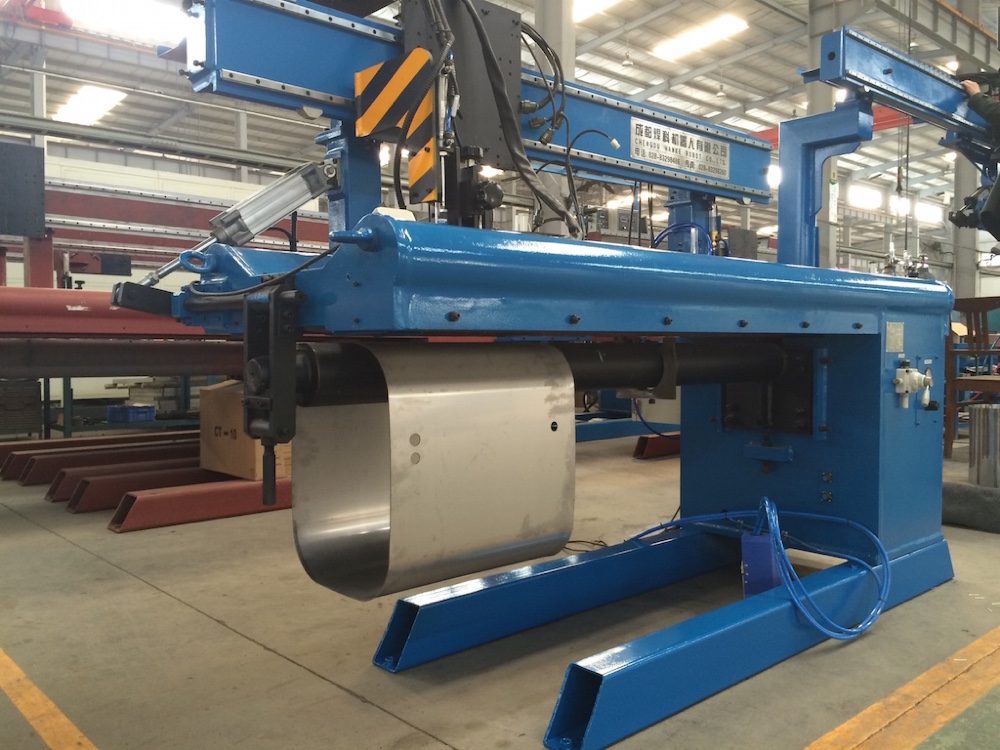

 Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine

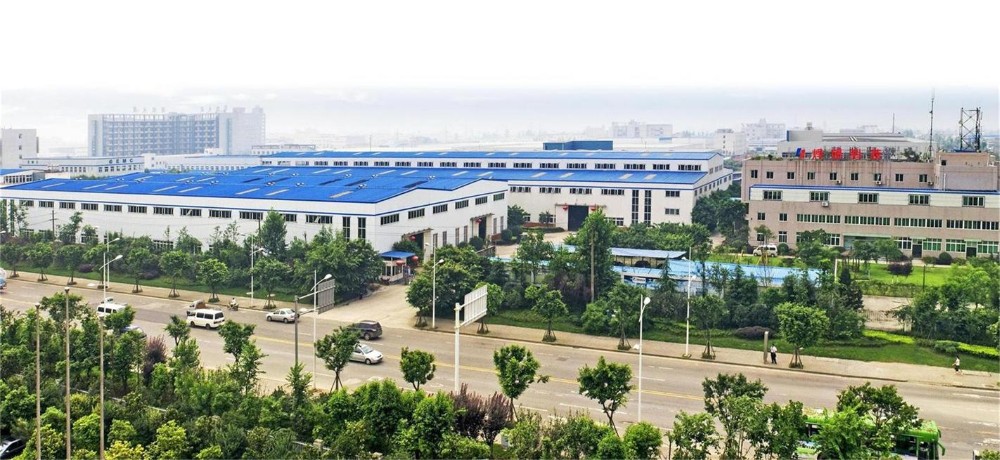

Our Company
Our Company
Our Services

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Information

•   More than 50 years accumulation in welding technology and experience

•  Working and servicing 99% industries

•  Most clients are first-class manufacturers in China or well-known company from the world

•  Top 3 by comprehensive strength in China

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine



Our Management sysem & Certifications

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine



Packaging & Shipping

Heavy Duty Longitudinal Seam Welder 380V 60A Square Tube Welding Machine
